DiMPro?功能性膜蛋白開發平臺

跨膜蛋白作為細胞膜的重要組成部分, 在物質運輸、信號轉導和細胞間識別等多種細胞功能中發揮著重要作用。其功能異常往往會導致疾病的發生，這使它們成為理想的藥物作用靶點。目前以跨膜蛋白為藥物靶點占現階段己知藥物靶點的60%以上。而針對抗體藥靶點，膜蛋白幾乎占90%以上。盡管有著重大的意義，針對跨膜蛋白的藥物開發仍然具有很大的挑戰性，主要是因?yàn)榭缒さ鞍椎氖杷Y(jié)構，使得其在體外很難以可溶性蛋白形式保持其天然構象，同時全長多跨膜蛋白通常表達水平較低，這些都是跨膜蛋白表達的難點所在。如何獲得最為天然構象和具有功能活性的膜蛋白是開發這一類靶點抗體藥物的核心所在。

締碼生物科技有限公司為了促進藥物研發，自主研發出多種針對膜蛋白的制備方案。利用HEK293細胞表達系統表達出更接近天然蛋白構象的重組膜蛋白。對于單穿膜蛋白，主要采取胞外結構域(ECD)融合蛋白表達系統。而針對全長多穿膜蛋白，如GPCR和Claudin系列蛋白，則采用締碼七大全長多跨膜蛋白表達平臺，包括純化膜蛋白平臺和非純化膜蛋白平臺。純化膜蛋白平臺包括：Synthetic Nanodisc、MSP Nanodisc、PeptiNanodisc和去垢劑平臺。非純化膜蛋白平臺包括：MNP(納米膜顆粒)、VLP和外泌體平臺。

DiMProm Membrane Protein Technology Platforms

平臺介紹

胞外結構域(ECD)融合蛋白表達平臺

胞外域蛋白表達平臺
  • 適用于單穿膜蛋白靶點
  • 1000+個現貨的ECD重組蛋白
  • HEK293哺乳動物表達系統
點擊查看服務詳情

全長多跨膜蛋白表達平臺

純化膜蛋白平臺

純化膜蛋白平臺
純化膜蛋白平臺區別

非純化膜蛋白平臺

非純化膜蛋白平臺
非純化膜蛋白平臺

平臺流程

膜蛋白平臺流程

平臺優勢

  1. 哺乳動物表達系統可表達出最接近天然蛋白構象及翻譯后修飾的重組膜蛋白
  2. 無血清培養體系：最大限度地減少宿主細胞污染
  3. 功能活性驗證
  4. 可實現蛋白定制和放大生產

關鍵應用

  1. 用于治療性抗體藥物開發的活性免疫原
  2. 配體受體結合實驗
  3. 藥物的臨床前體外功能性實驗
  4. 蛋白質功能測試
  5. 基于細胞學的功能檢測試驗

案例展示

Human BCMA Protein, mFc Tag (PME100035)

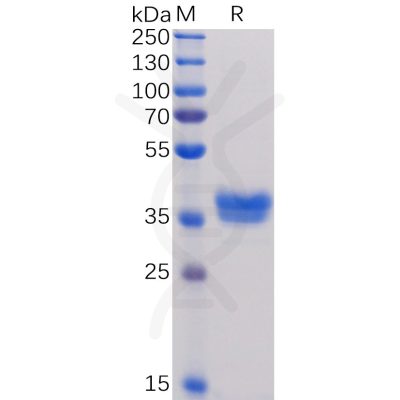

Human BCMA, mFc Tag on SDS-PAGE under reducing condition

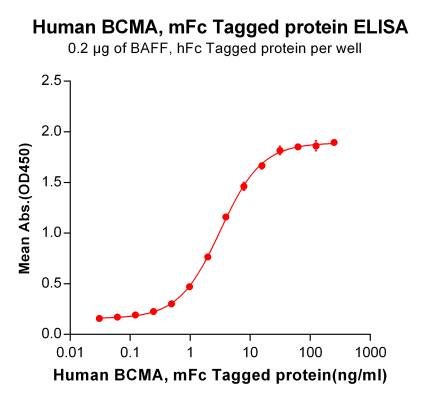

Human BAFF protein (100 μl/per well) (PME100043) binds to Human BCMA protein (PME100035) (EC50 0.03-15.625 ng/ml).

uploads-PME100035 BCMA mFc ELISA Fig31 2

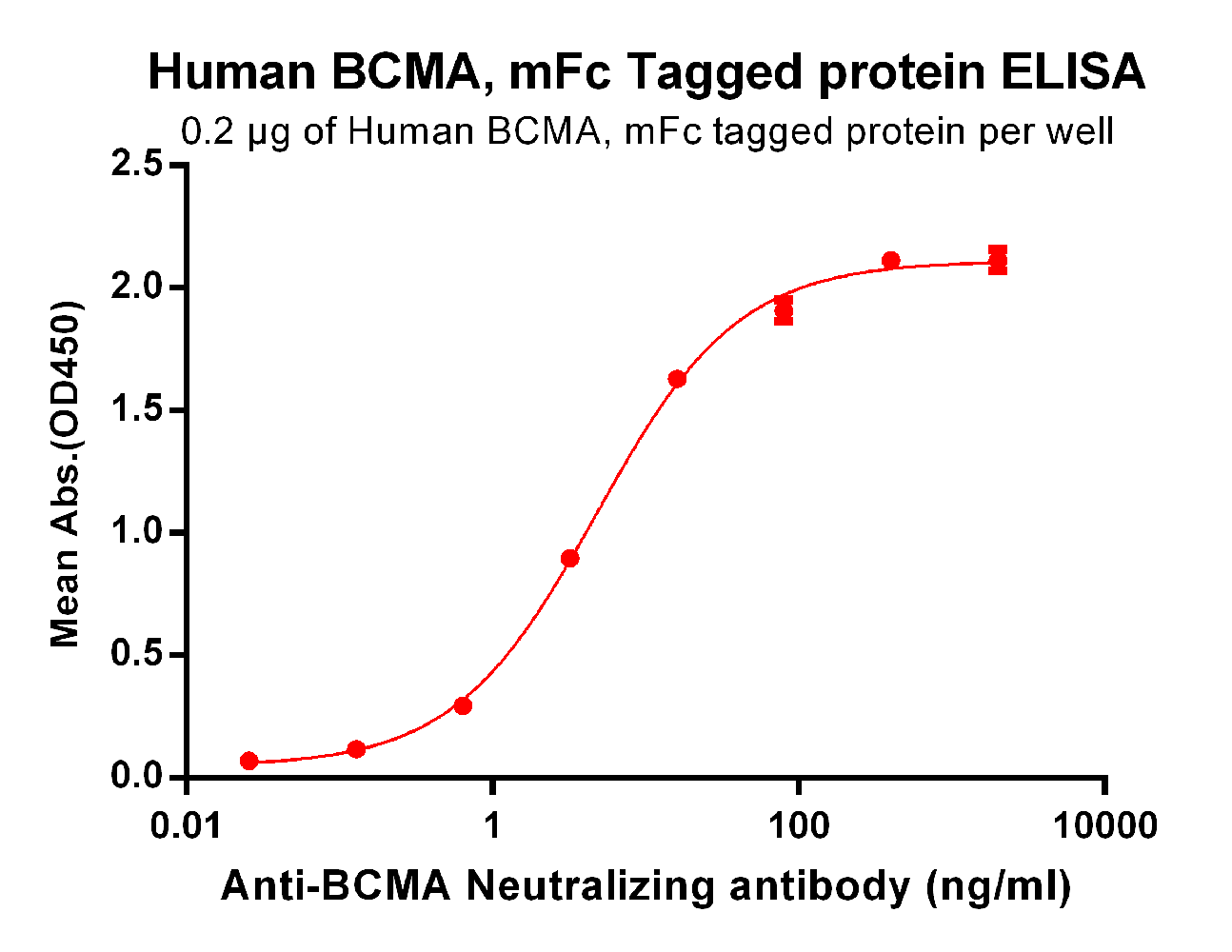

Human BCMA protein (2 μg/ml) (PME100035) binds to Anti-BCMA Neutralizing antibody (BME100028) (EC50 0.64-80.0 ng/ml).

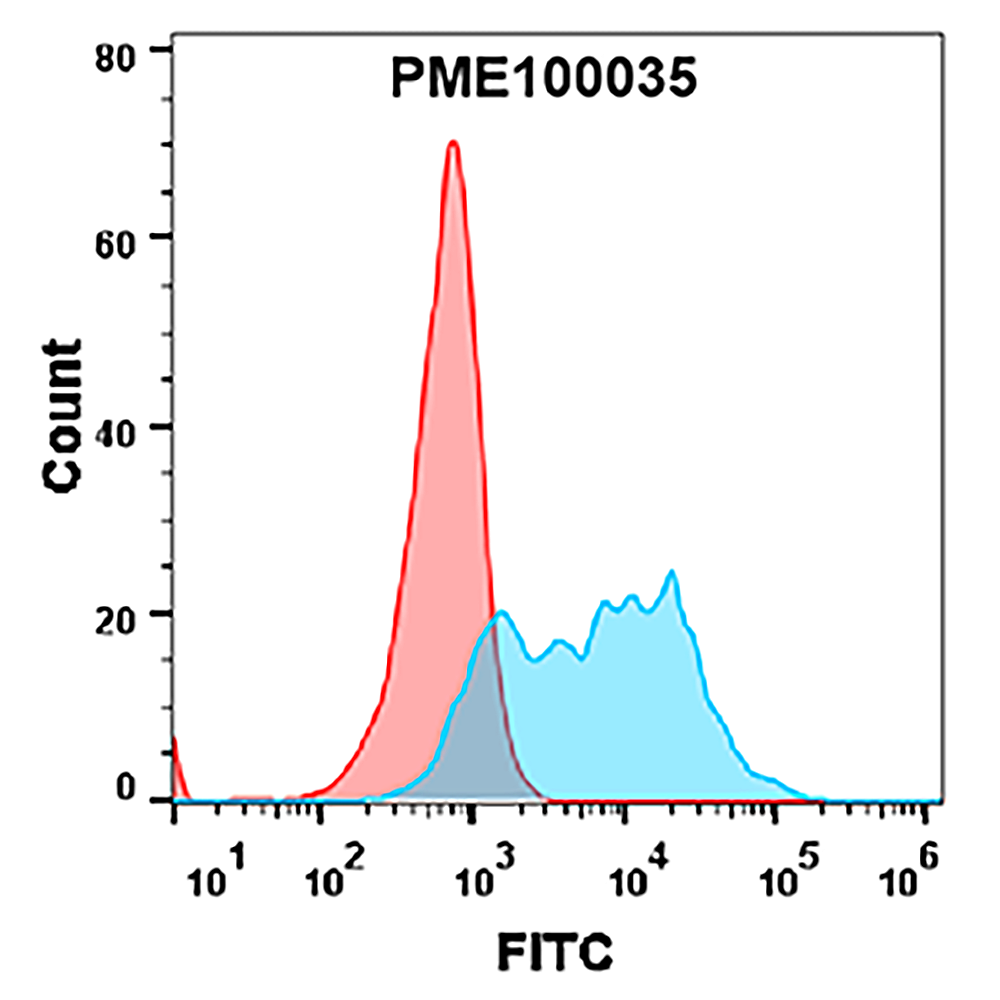

FC analysis with 1μg/ml Human BCMA Protein on HEK293 cells transfected with human BAFF (Blue) or HEK293 transfected with irrelevant protein (Red).

Human GPR75-Strep full length protein-synthetic nanodisc (FLP120031)

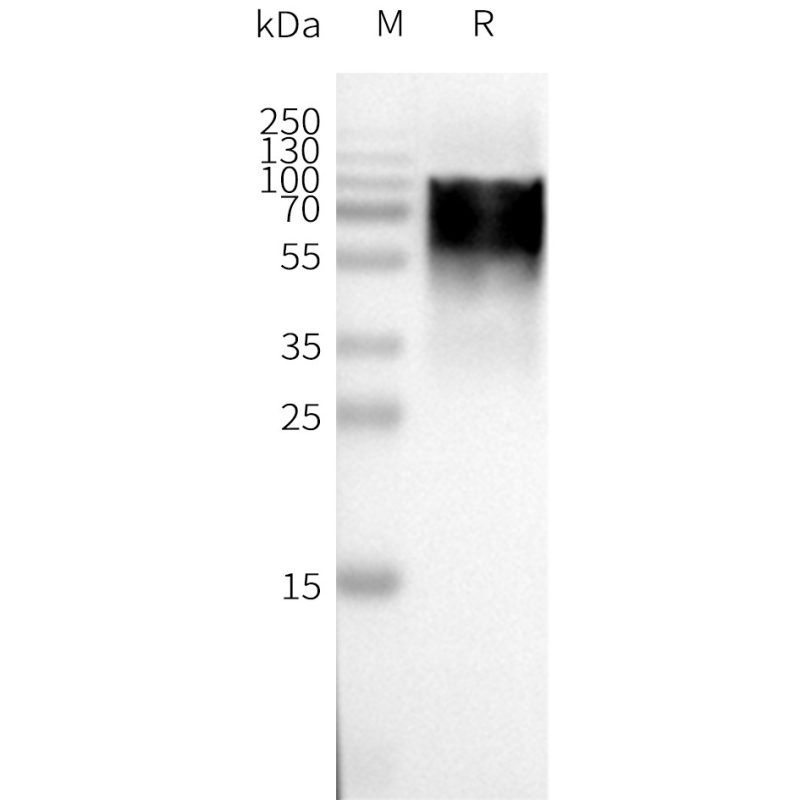

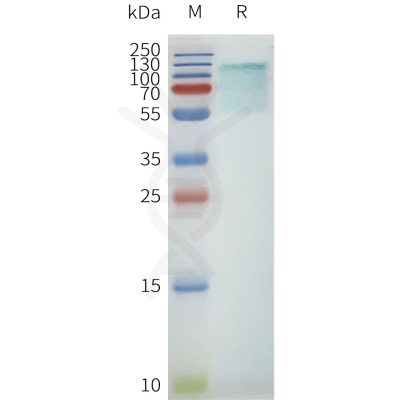

Human GPR75-Strep-Nanodisc on SDS-PAGE

WB analysis of GPR75-Strep-Nanodisc with anti-GPR75 mAb (DMC100368)

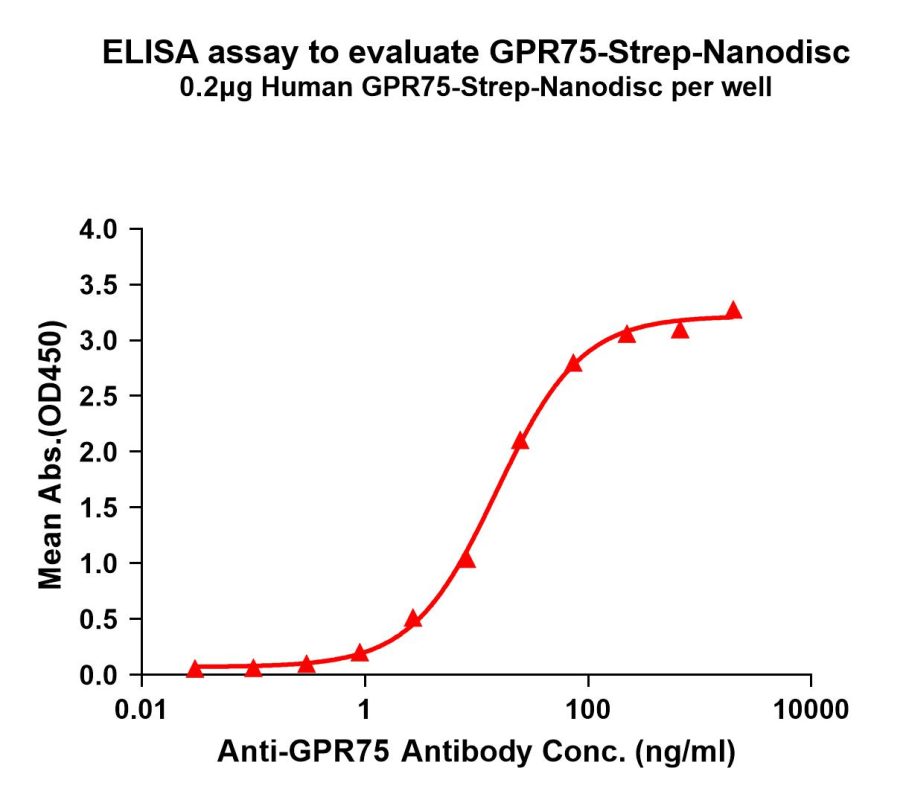

Human GPR75-Strep-Nanodisc (0.2μg/per well) binds to anti-GPR75 mAb (DMC100368) (EC50 15.14ng/ml).

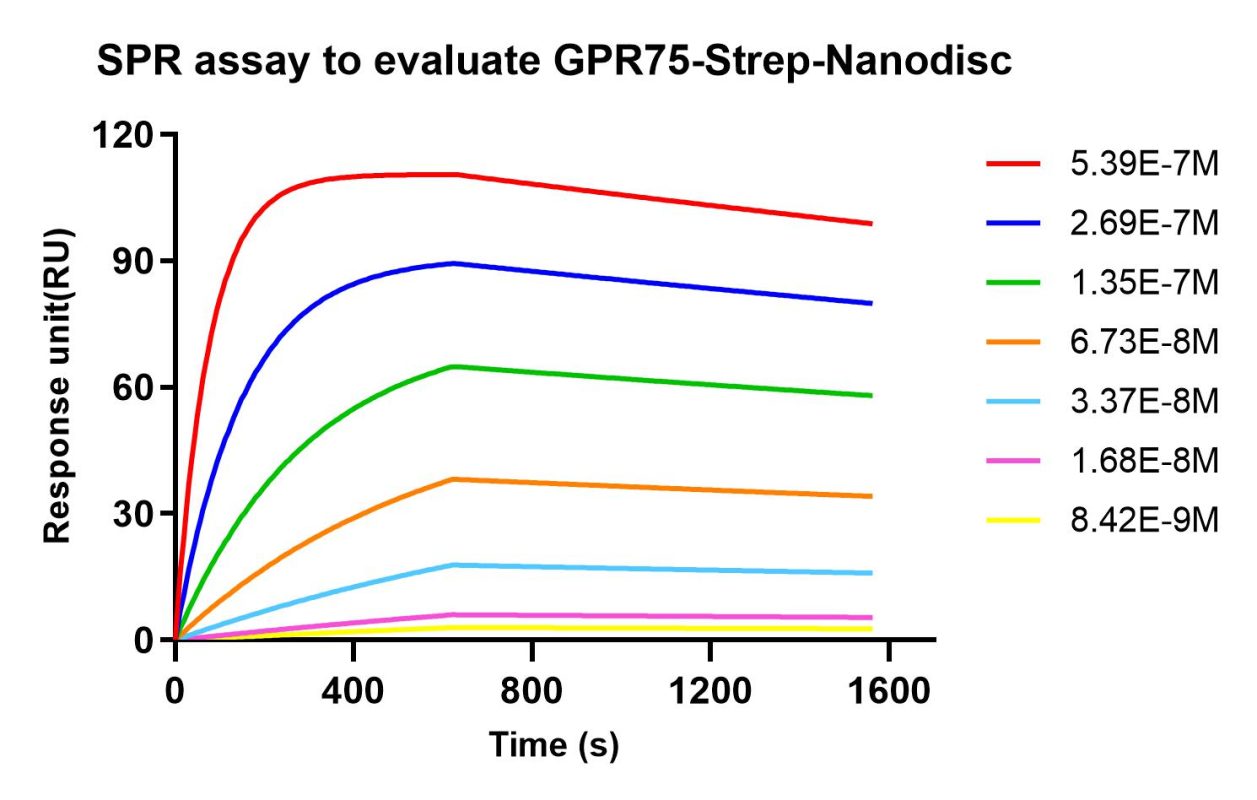

Loaded Human GPR75 mAb (DMC100368) on Pro-A Biosensor, binds human GPR75-Strep-synthetic nanodisc ( an affinity constant 5.02nM) .

Human CLDN18.2-Strep full length protein-PeptiNanodisc (FLP420014)

SDS-PAGE Analysis the Purity of CLDN18.2-PeptiNanodisc

CLDN18.2-Peptidisc (0.2μg/per well) binds anti-CLDN18.2 mAb (DME100179) (EC50 60.34ng/ml).?

Human CLDN6 full length protein -MNP (FLP100004)

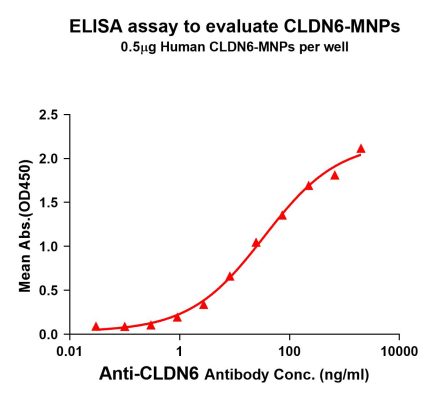

Human CLDN6 membrane nanoparticles (0.5μg/per well) binds to anti-CLDN6 mAb (BME100082) (EC50 34.36ng/ml).

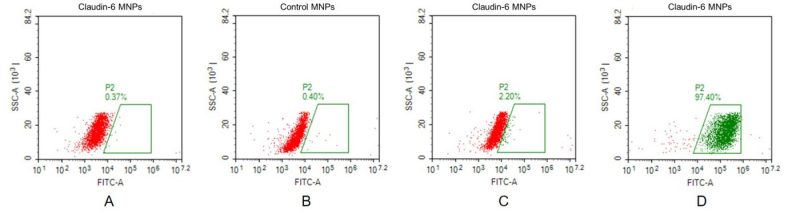

FACS analysis of CLDN6 MNPs

A. CLDN6 MNPs were stained only with secondary Ab. B. Control MNPs (2μg/mL) were stained with anti-CLDN6 antibody (BME100082), followed by secondary Ab. C. CLDN6 MNPs (2μg/mL) were stained with anti-GPRC5D antibody, followed by secondary Ab. D. CLDN6 MNPs (2μg/mL) were stained with anti-CLDN6 antibody (BME100082), followed by  secondary Ab.

Human CLDN18.2 full length protein-VLP (FLP100006)

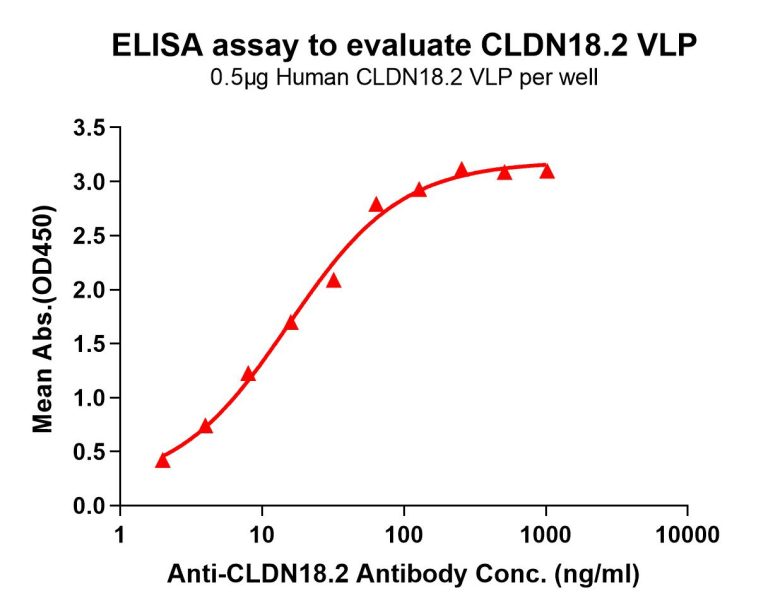

Human CLDN18.2 VLP (0.5ug/per well) binds to Anti-CLDN18.2 mAb (Zolbetuximab biosililar) (EC50 15.37ng/ml).

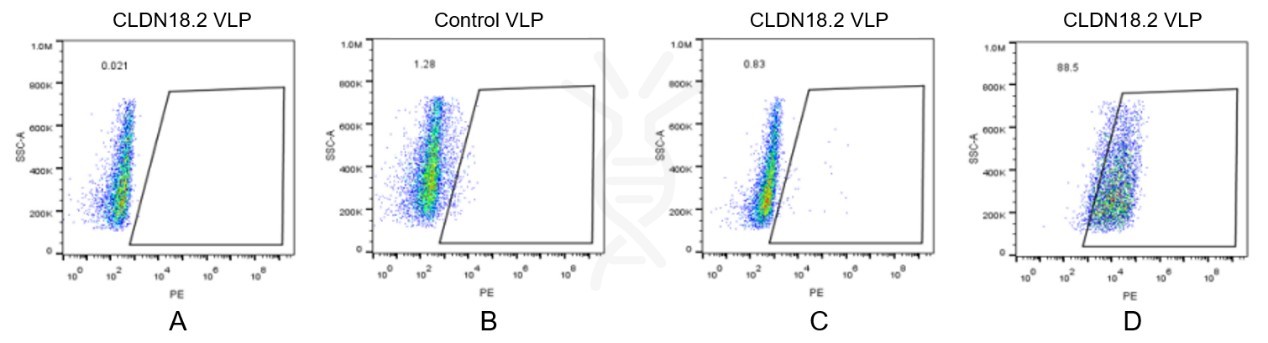

FACS analysis of CLDN18.2 VLP

A. CLDN18.2 VLP were stained only with PE secondary Ab.
B. Control VLP (1μg/mL) were stained with anti-CLDN18.2 antibody (Zolbetuximab biosimilar), followed by PE secondary Ab.
C. CLDN18.2 VLP (1μg/mL) were stained with anti-BCMA antibody, followed by PE secondary Ab.
D. CLDN18.2 VLP (1μg/mL) were stained with anti-CLDN18.2 antibody（Zolbetuximab biosimilar) , followed by PE secondary Ab.

Human CD24 full length protein-exo (FLP100002)

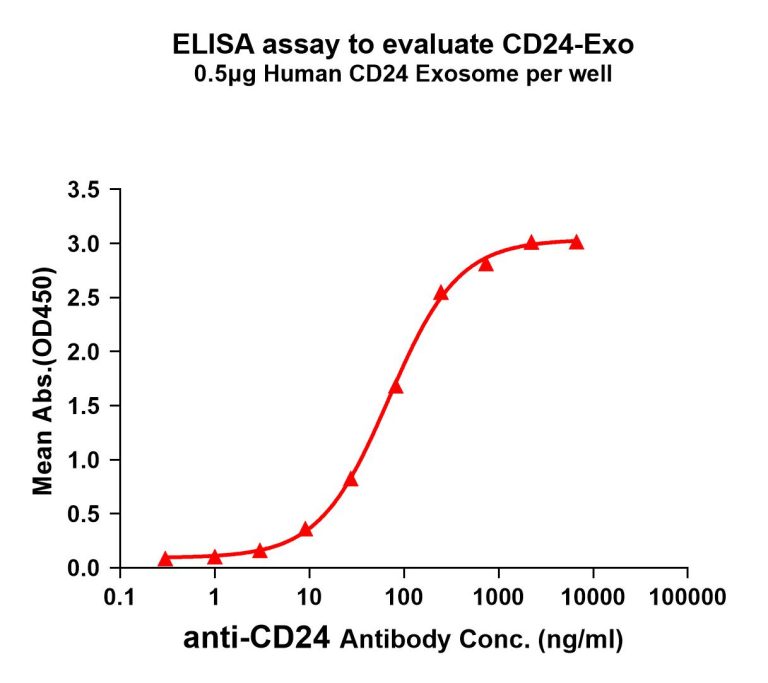

Human CD24 exosome (0.5μg/per well) binds to Anti-CD24 mAb (EC50 69.61ng/ml).

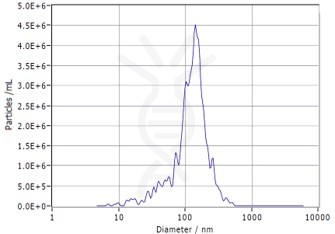

Nanoparticle Tracking Analysis of CD24 exosomes

TEM image of CD24 exosomes
